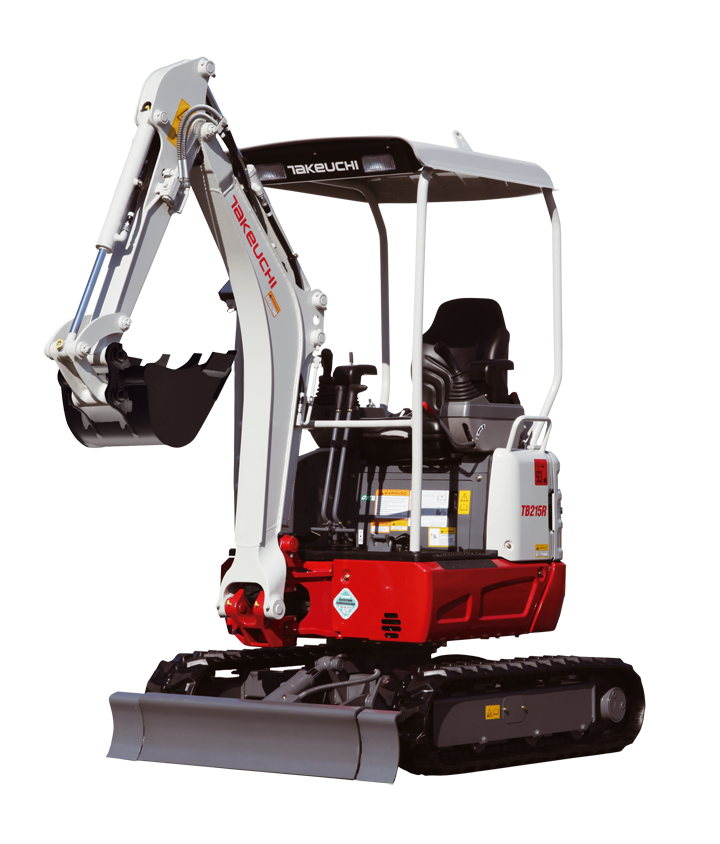

1.5 TONNE MINI EXCAVATOR

With a short tail or reduced tail swing, the upper structure and cab only exceed the track footprint by centimetres, allowing operators to work and rotate right up to walls without potentially damaging the machine.

Operating Weight: 1580kg
Width: 980mm
Extended Tracks Max Width: 1300mm
Height: 2345mm
Length: 3445mm
Max Dig Depth: 2190mm
Max Dump Height: 2400mm
Max Ground Reach: 3760mm
Max Bucket Digging Force: 14 kN
Max Arm Digging Force: 9.5 kN
Rated Power: 11.5kW/2400 RPM
Hydraulic Breakers: TKB52-S
